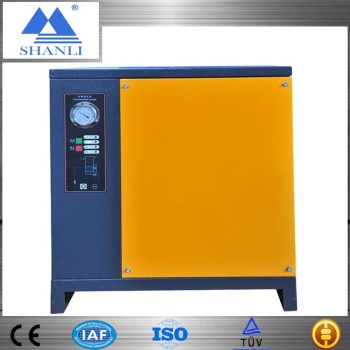

China Shanli Air Cooled Refrigeranted Air Dryer

group name: Refrigerated air dryer

Min Order: 1 unit

brand name: SHANLI

model: SLAD-6NF

Nearest port for product export: Ningbo, Shanghai, Guangzhou, Tianjin

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, Express Delivery

Acceptable payment methods: T/T, L/C, Cash

update time: Sat, 16 Nov 2024 08:24:14 GMT

contact supplier

Paramtents

Air inlet temperature ≤45°C
Cooling way Air-cooled
Ambient temperature ≤38°C
Pressure dew point 2~10°C
Air inlet pressure 0.6~1.0MPa
Pressure loss ≤3% of inlet pressure
Place of origin Hangzhou, China
Configuration Stationary
Warranty 1 year
Color depend on requirement

Packging & Delivery

105cm x 65cm x 77cm
Min Order1 unit

Briefing

point the condensed moisture is separated and drained off

Detailed

Features

1. Max air inlet temp:50℃;

2. Economic and convenient,no water system required;

3. Highly efficient moisture separation with patented design water separator;

4. Patented design in water separator which 99.9%water be separated;

5. Refrigerant compressor: Danfoss, Performer, Bitzer, Copeland, Maneurop, Fusheng;

6. Refrigerant control: Danfoss, Emerson, Sprolan;

7. Low noise,running stable,energy saving and long life;

8. Real time display operating parameters.

Model	(Nm3/min)	(m3/h)	(cfm)	Equipment net weight（kg）	length(mm)	wide	high	Compressor Power	Refrigerant	Pipe Diameter
SLAD-0.5NF	0.65	39	23	40	450	500	670	215W	R134a	G1"
SLAD-1NF	1.2	72	42	50	450	500	670	304W	R134a	G1"
SLAD-2NF	2.5	150	88	85	500	500	780	520W	R134a	G1"
SLAD-3NF	3.6	216	127	90	500	500	880	738W	R407C	G1"
SLAD-4.5NF	5	300	176	120	700	550	1100	961W	R407C	G1 1/2"
SLAD-6NF	6.8	408	240	130	700	550	1170	1152W	R407C	G1 1/2"
SLAD-8NF	8.5	510	300	160	770	600	960	1407W	R407C	G2"
SLAD-10NF	10.9	654	384	200	820	700	1040	2182W	R407C	G2"
SLAD-12NF	12.8	768	451	200	820	700	1040	2182W	R407C	G2"
SLAD-15NF	16	960	564	310	1460	750	1604	2182W	R407C	DN65
SLAD-20NF	22	1320	775	410	1670	800	1623	4.1KW	R407C	DN65
SLAD-25NF	26.8	1608	945	540	1820	800	1673	4.89KW	R407C	DN80
SLAD-30NF	32	1920	1128	640	1900	860	1855	5.32KW	R407C	DN80
SLAD-40NF	43.5	2610	1533	740	2200	930	1920	7.83KW	R407C	DN100
SLAD-50NF	53	3180	1868	880	2450	900	2090	9.02KW	R407C	DN100
SLAD-60NF	67	4020	2361	1010	2140	1450	1767	10.52KW	R407C	DN125
SLAD-80NF	90	5400	3172	1300	2070	1600	1986	17.03KW	R407C	DN125
SLAD-100NF	110	6600	3877	2000	2700	1600	1996	18.56KW	R407C	DN150

Features

1.Usingindustry circulation water as the cooling medium and suitable for hotenvironment.

2.Counterflow design in heat exchanger with high efficient and small size

3.3-stageseparation patented design in steam separator:direct colliion type,low speed centifugationand

stainless wire demist.The result is 99%separation efficiency and low dew point.

4.Famousbrands refrigeration compressor,such as Performer,Bitzer,Copeland with steadyrunning,low noise,high

cop,energy saving and long life

5.Famousrefrigerated control components like Danfoss,Emerson,Sporlan

6.Real-timedisplay the operation parameter.

1. By-bass valve. Some domestic suppliers don't have it.

2. 3-stage separation patented design in water separator. Direct colliion type, low speed centifugation and stainless wire demist. The result is 99% separation efficiency.

3. Heat exchanger design. The finished air and inlet air make heat exchange in it and make the finished air a better temperature for the final use. Some supplier omit this step.
